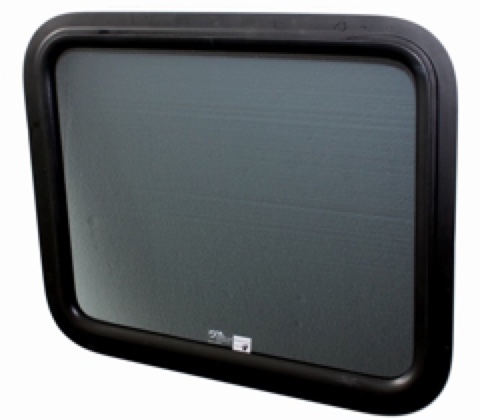

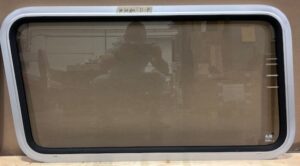

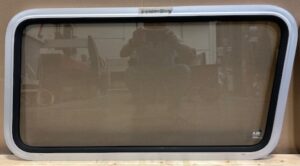

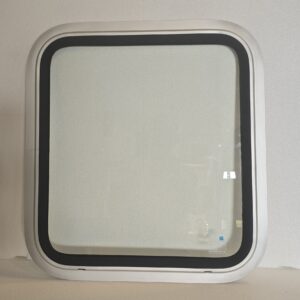

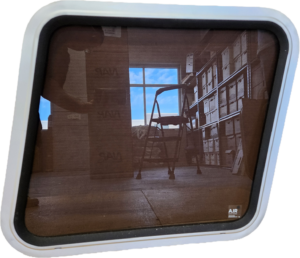

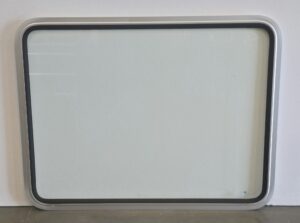

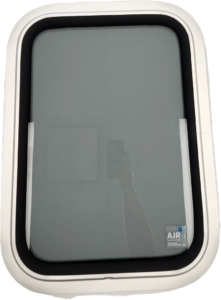

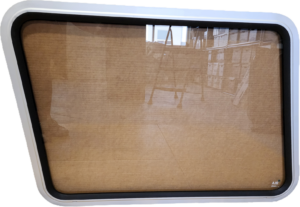

A5 Fixed Window

Fixed windows are designed to be used on most marine vessels or commercial vehicles as they are robust built to any size or shape to bring light into your cabin or to provide visual exposure. They have a 1/8″ thick heavy duty anodized aluminum frame for strength and to prevent corrosion. These can be custom made to fit any size opening with radius or mitered corners and they are available in a variety of colors to suit your needs.   Our extrusion has a built in drain system which is angled out to allow water to stay on the exterior. They can hold glass thickness’ from 1/4″ to 3/8″ in either Laminated or Tempered glass. Standard vessels use 1/4″ laminated or safety glass as they will stay in tact if broken. Commercial or work vessels use a thicker glass and may call for tempered for the extra strength.  These windows are sealed and guaranteed not to leak.

SPECIFICATIONS

  • 1/8″ thick and 1.25″ wide Anodized Aluminum extrusion
  • Custom made to fit any opening
  • 2.5″ or 3″ Radius or Mitered corners
  • Clamp-in style frame or surface mount for easy installation
  • Custom wall trim from 1/16″-2.5″
  • Clear Anodized Aluminum or powder coated with a variety of colors
  • Laminated or Tempered glass
  • Choices of glass tint
  • A variety of colours to choose from
  • Guaranteed leak free
  • Can be sealed for extreme weather conditions
  • Tested ISO 12216 for extreme weather conditions

Window Corners

  • 2.5” RADIUS
  • 3” RADIUS
  • MITERED

Paint Colors

Black

Silver

White

Glass Tint

Clear

6mm - 1/4” & 10mm - 3/8”

44% Light Grey

6mm - 1/4” & 10mm - 3/8”

Green

6mm - 1/4” & 10mm - 3/8”

Bronze

6mm - 1/4” & 10mm - 3/8”

28% Dark Grey

6mm - 1/4” & 10mm - 3/8”

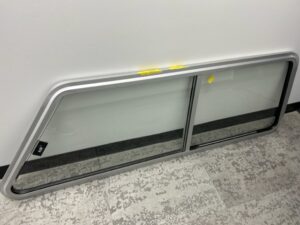

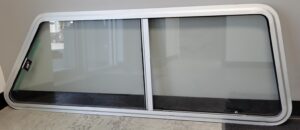

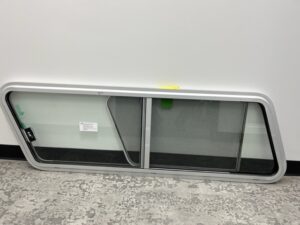

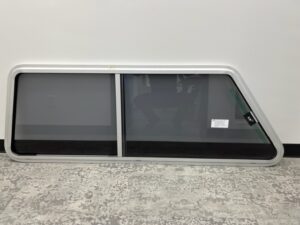

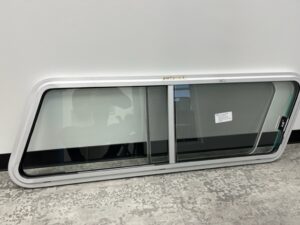

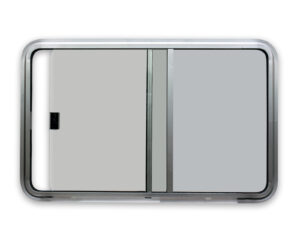

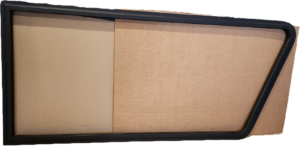

A15 Sliding Window No Screen

Sliding windows are used on most marine recreational, luxury and commercial vessels. Our sliding windows sit in a two track extrusion. Each track separates the fixed and sliding glass so they slide smoothly and freely. The T-bars lock to prevent any leaking and wind noise. We use heavy duty weather stripping to prevent moisture, wind and rattling to occur. Each pane of glass or screen sit on a slide rail for easy opening and to prevent vibration. The glass panes sit deeper in the track than other windows on the market which prevents water from penetrating the boat. Our unique drain system is angled to drain water quickly. Our large hidden drain holes allow water to flow freely while being aesthetically pleasing from the outside. Standard vessels use 1/4″ laminated safety glass as they will stay in tact if broken.

  • Custom made to fit any size window opening
  • 1/8″ thick and 2″ wide anodized aluminum extrusion
  • Clamp-in style frame or surface mount for easy installation
  • Custom wall trims from 1/16″-2.5″
  • 2.5″ or 3″ Radius or Mitered corners
  • Clear Anodized Aluminum or powder coated in a variety of colours
  • 1/4″ Laminated or Tempered glass
  • Choice of glass tint
  • Forward or Aft sliding
  • Single or Double slider
  • Inter locking t-bars
  • Tested ISO 12216 for extreme weather conditions

Window Corners

  • 2.5” RADIUS
  • 3” RADIUS
  • MITERED

Paint Colors

Black

Silver

White

Glass Tint

Clear

6mm - 1/4” Laminate or Tempered

44% Light Grey

6mm - 1/4” Laminate or Tempered

Green

6mm - 1/4” Laminate or Tempered

Bronze

6mm - 1/4” Laminate or Tempered

28% Dark Grey

6mm - 1/4” Laminate or Tempered

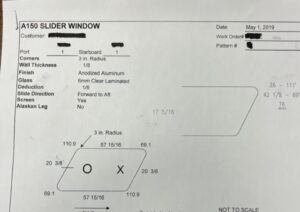

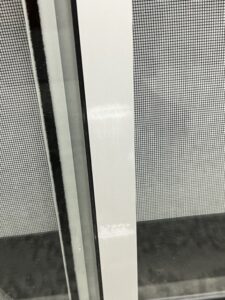

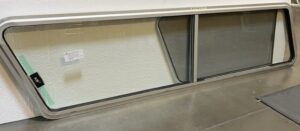

A150 Sliding Window With Screen

Sliding windows are used on most marine recreational, luxury and commercial vessels. Our sliding windows sit in a three track extrusion. Each track separates the fixed, sliding glass and screen so they slide smoothly and freely. The T-bars lock to prevent any leaking and wind noise. We use heavy duty weather stripping to prevent moisture, wind and rattling to occur. Each pane of glass or screen sit on a slide rail for easy opening and to prevent vibration. The glass panes sit deeper in the track than other windows on the market which prevents water from penetrating the boat. Our unique drain system is angled to drain water quickly. Our large hidden drain holes allow water to flow freely while being aesthetically pleasing from the outside. Standard vessels use 1/4″ laminated or safety glass as they will stay in tact if broken.

  • Custom made to fit any size window opening
  • 1/8″ thick and 2″ wide anodized aluminum extrusion
  • Clamp-in style frame or surface mount for easy installation
  • Custom wall trims from 1/16″-2.5″
  • 3″ Radius or Mitered corners
  • Clear Anodized Aluminum or powder coated in a variety of colors
  • 1/4″ Laminated or Tempered glass
  • Choice of glass tint
  • Forward or Aft sliding
  • Inter locking t-bars
  • Tested ISO 12216 for extreme weather conditions

Paint Colors

Black

White

Silver

Glass Tint

Green

6mm - 1/4” Laminate or Tempered

Clear

6mm - 1/4” Laminate or Tempered

44% Light Grey

6mm - 1/4” Laminate or Tempered

Bronze

6mm - 1/4” Laminate or Tempered

28% Dark Grey

6mm - 1/4” Laminate or Tempered

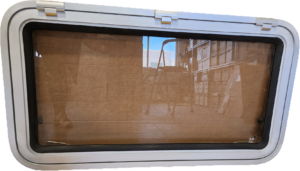

A106 Hinged Window

These windows are another option if you are looking for air flow into your cabin while protecting the interior from the outdoor elements. These are commercial windows, constructed from heavy duty 1/4″ thick anodized aluminum for added strength. They are two frames within a frame so are heavy duty and capable of being built in larger sizes only. Our Pop-out windows can be custom ordered in any size with a 3″ radius or mitered corners. The hinges can be mounted at the top or on the sides. Gas shocks or adjustable supports are added to keep the window open at a set angle to allow for a free air flow. They form a tight seal and are leak proof when they are closed.

SPECIFICATIONS

  • Custom made to fit any size window opening
  • 1/4″ thick and 3″ wide
  • Clamp-in style frame or surface mount for easy installation
  • Custom wall trims from 1/16″-2.5″
  • 3″ Radius or Mitered corners
  • Clear Anodized Aluminum or powder coated in a variety of colours
  • 1/4″ Laminated or Tempered glass
  • Choice of glass tint
  • Hinge can be mounted on the top or sides
  • Choice of gas shocks or adjustable supports
  • Tested ISO 12216 for extreme weather conditions

Window Corners

  • 3” RADIUS
  • MITERED

Paint Colors

Black

Silver

White

Glass Tint

Clear

6mm - 1/4" Laminate or Tempered

44% Light Grey

6mm - 1/4” Laminate or Tempered

Green

6mm - 1/4” Laminate or Tempered

Bronze

6mm - 1/4” Laminate or Tempered

28% Dark Grey

6mm - 1/4” Laminate or Tempered

Fritted Glass

There has been an increasing demand for fritted glass to create a flush glass surface. This form of glazing is not only contemporary and professional, it is also functional because it is part of the construction. It offers a modern, smooth design and provides many possibilities in design and color. It is often used on pleasure boats and yachts.

TECHNOLOGY

You can choose for directly bonding the glass against the construction or in the grooves made in the hull construction. It can be bonded to fiberglass, aluminum or steel. It’s ease of installation allow it to be prepared, bonded and placed into position efficiently. The bond seal is highly elastic allowing it to handle the high seas and leak free. The frit edge provides a UV protection to ensure longevity.



OPTIONS

The possibilities with structural glazing are endless when it comes to design and color. It is also possible to choose for single, insulated, heated or safety glass. We provide you the window that is fully compatible to your needs.

A500 Sealed Unit

The A500 Sealed Unit is a commercial fixed window, constructed using a thicker and deeper extrusion to provide a stronger frame. This unit is capable of holding extra thick glass such as double paned or heated glass. They have a 1/4″ thick heavy duty anodized aluminum frame for strength and to prevent corrosion. These can be custom made to fit any size opening with radius or mitered corners and they are available in a variety of colors to suit your needs.   Our extrusion has a built in drain system which is angled out to allow water to stay on the exterior. They can hold glass thickness’ from 1/2″ in either heated or double paned in Laminated or Tempered glass. Commercial or work vessels use a thicker glass and may call for tempered for the extra strength.  These windows are sealed and guaranteed not to leak.

SPECIFICATIONS

  • 1/4″ thick and 1.25″ wide Anodized Aluminum extrusion
  • Custom made to fit any opening
  • 3″ Radius or Mitered corners
  • Clamp-in style frame or surface mount for easy installation
  • Custom wall trim from 1/16″-2.5″
  • Clear Anodized Aluminum or powder coated with a variety of colors
  • Uses a retaining ring to hold in glass
  • Laminated or Tempered glass 1/2″
  • Choices of glass tint
  • Available with powder coat in a varietey of colours to choose from
  • Guaranteed leak free
  • Can be sealed for extreme weather conditions
  • Tested ISO 12216 for extreme weather conditions

Window Corners

  • 3” RADIUS
  • MITERED

Paint Colors

Black

Silver

White

Glass Tint

Clear

13mm - 1/2” Laminated or Tempered

44% Light Grey

13mm - 1/2” Laminated or Tempered

Green

13mm - 1/2” Laminated or Tempered

Bronze

13mm - 1/2” Laminated or Tempered

28% Dark Grey

13mm - 1/2” Laminated or Tempered

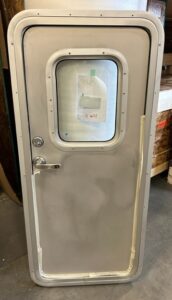

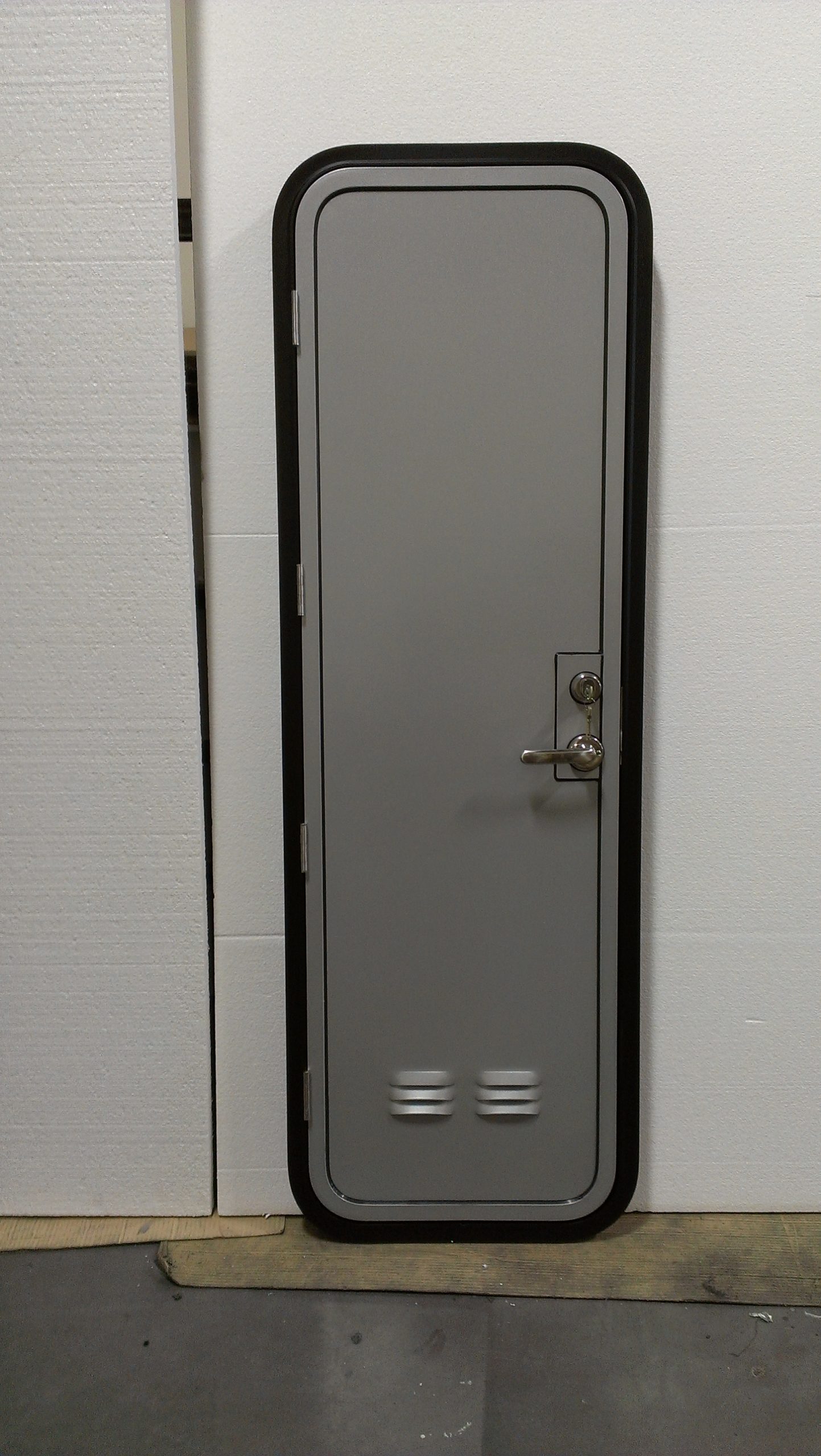

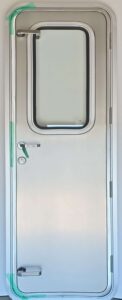

A55 Non-Insulated Hinged Door

Our non-insulated lighter weight door is seamlessly welded using a marine grade aluminum sheet or tempered glass insert. This provides a weather tight door that is light so it can be used inside or out. These are custom built to fit into any door opening. There are many options which will allow you to order a variety of finishes and a selection of window tints. They can be produced with a 4″ radius or mitered corners. Upgrades can be made to include TrioVing locks.

Also available with sheet // full glass // window // marine brd

Specifications

  • Custom made to fit your door opening
  • Radius 4″ or Mitered corners
  • Easy installation with trim ring for interior finish
  • Frame is made with 6063 mill finished aluminum
  • Door insert is made from tempered glass or 5052 aluminum sheet 3/16″ thick or white marine board
  • Available in mill finish or powder coat in a variety of colors
  • Glass can be ordered in a variety of tints
  • European TrioVing lock sets can be added
  • Any size style or size window can be added

Paint Colors

Black

Silver

White

Mill Finish - Aluminum Natural

Glass Tint

Clear

6mm - 1/4" Laminate or Tempered

44% Light Grey

6mm - 1/4" Laminate or Tempered

Green

6mm - 1/4" Laminate or Tempered

Bronze

6mm - 1/4" Laminate or Tempered

28% Dark Grey

6mm - 1/4" Laminate or Tempered

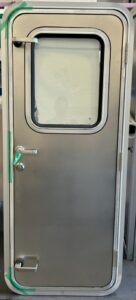

A250 Insulated Hinged Door

Our insulated heavy duty door is seamlessly welded using two marine grade aluminum sheets insulated with foam or sound barrier insulation. This provides a weather tight door that is strong and durable to resist all the the abuse and elements thrown at it. These are custom built to fit into any door opening. There are many options which will allow you to order a variety of finishes and a selection of window tints. They can be produced with a 4″ radius or mitered corners. Upgrades can be made to include TrioVing locks and/or dogs.

Specifications

  • Custom made to fit your door opening
  • Radius 4″ or Mitered corners
  • Easy installation with trim ring for interior finish
  • Frame is made with a 6063 mill finished aluminum extrusion
  • Door insert is made from two 5052 aluminum sheets 0.090″ thick
  • Available in mill finish or powder coated in a variety of colors
  • Fixed, sliding or pop-out windows can be added
  • Glass can be ordered in a variety of tints
  • European TrioVing lock sets can be upgraded
  • Dog handles can be mounted for extra stability

Paint Colors

Black

Silver

White

Mill Finish - Aluminum Natural

Glass Tint

Clear

6mm - 1/4" Laminate or Tempered

44% Light Grey

6mm - 1/4" Laminate or Tempered

Green

6mm - 1/4" Laminate or Tempered

Bronze

6mm - 1/4" Laminate or Tempered

28% Dark Grey

6mm - 1/4" Laminate or Tempered

A250 Hinged Dutch Door

The Dutch door is a heavy duty hinged door which is seamlessly welded using two marine grade aluminum sheets and insulated with foam. These can be built as an engine room door using sound down barrier insulation. This provides a weather tight door that is strong and durable to resist all the abuse and elements thrown at it. These are custom built to fit into any door opening. There are many options which will allow you to order a variety of finishes and a selection of window tints. They are produced with radius 4″ or mitered corners. Upgrades can include European TrioVing locks and additional dogs.

Specifications

  • Custom made to fit your door opening
  • Radius 4″ or Mitered corners
  • Easy installation with trim ring for interior finish
  • Frame is made with a 6063 mill finished aluminum extrusion
  • Door insert is made from 5052 aluminum sheet 0.090″ thick
  • Available in mill finish or powder coated in a variety of colors
  • Fixed, sliding or pop-out windows can be added
  • Glass can be ordered in a variety of tints
  • European TrioVing lock sets can be upgraded
  • Dog handles can be mounted for extra stability

Paint Colors

Black

Silver

White

Mill Finish - Natural Aluminum

Glass Tint

Clear

6mm - 1/4" Laminate or Tempered

44% Light Grey

6mm - 1/4" Laminate or Tempered

Green

6mm - 1/4" Laminate or Tempered

Bronze

6mm - 1/4" Laminate or Tempered

28% Dark Grey

6mm - 1/4" Laminate or Tempered

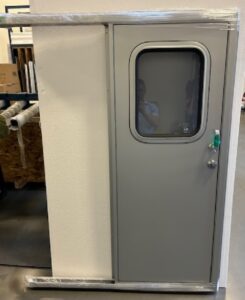

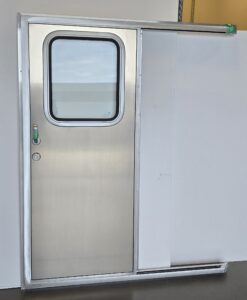

2007 Insulated Sliding Door

Our insulated heavy duty sliding door  is seamlessly welded  from two marine grade aluminum sheets insulated with foam or sound barrier insulation. This provides a weather tight door that is strong and durable to resist all the abuse and elements thrown at it. These are custom built to fit into any door opening. There are many options which will allow you to order a variety of finishes and a selection of window tints. They are produced with mitered corners and the frames can be ordered shimmed to slide over an existing window or non-shimmed. European TrioVing locks are standard on these sliding doors

Specifications

  • Custom made to fit your door opening
  • Mitered corners
  • Easy installation with trim ring for interior finish
  • Frame is made with 6063 mill finished aluminum
  • Door insert is made from 5052 aluminum sheet 0.090″ thick
  • Insulated with foam or sound barrier foam
  • Insert slides on stainless steel wheels
  • Available in mill finish or a variety of colors
  • Glass can be ordered in a variety of tints
  • TrioVing lock standard, can be keyed a like
  • Any size or style window can be added

Paint Colors

Black

Silver

White

Mill Finish - Aluminum Natural

Glass Tint

Clear

6mm - 1/4" Laminate or Tempered

44% Light Grey

6mm - 1/4" Laminate or Tempered

Green

6mm - 1/4" Laminate or Tempered

Bronze

6mm - 1/4" Laminate or Tempered

28% Dark Grey

6mm - 1/4" Laminate or Tempered

2018 Non-Insulated Sliding Door

Our Non-Insulated sliding door was built to offer a sturdy door at a lower price. It is constructed using a  3/16″ Aluminum insert and components which saves us time in production. We have also left welds and do less prep to remove scratches etc to provide a natural low priced option. It is seamlessly joined using a single 3/16″ marine grade aluminum sheet. This provides a weather tight door that is strong and durable to resist all the abuse and elements thrown at it. These are custom built to fit into any door opening. There are many options which will allow you to order a variety of finishes and a selection of window tints. They are produced with mitered corners and the frames will slide over an existing window.

Specifications

  • Custom made to fit your door opening
  • Mitered corners
  • Light-weight lock set
  • Frame is made with 6063 mill finished aluminum
  • Door insert is made from 5052 aluminum sheet 3/16″ thick
  • Non-insulated
  • Available with full glass, mill finish sheet or powder coated in a variety of colors
  • Can accommodate an A5 Fixed window
  • Glass can be ordered in a variety of tints

Paint Colors

Black

Silver

White

Mill Finish - Natural State as is

Small scratches, discolouration, and marks may be present.

Glass Tint

Clear

6mm - 1/4" Laminate or Tempered

44% Light Grey

6mm - 1/4" Laminate or Tempered

Green

6mm - 1/4" Laminate or Tempered

Bronze

6mm - 1/4" Laminate or Tempered

28% Dark Grey

6mm - 1/4" Laminate or Tempered

Soft Top Windshield

We custom build soft-top windshields using flat panels. Our windshields cannot be curved but provide a retro-look with straight lines. We can do a two or three panel construction with a gate. We require your measurements, design and/or template to build these. These can accommodate button snaps for your canvas top. These can be painted or left in an anodized aluminum finish.

  • Custom made to fit flat deck boats
  • Two or three flat panel with gate and side wings
  • Powder coated with a variety of colors to choose from
  • Laminated or Tempered glass
  • Glass available in a variety of tints
  • Bolt construction so cannot hold or support a hard top

Paint Colors

White

Black

Silver

Glass Tint

6mm or 1/4" Laminated Glass

Hard Top Windshield

We custom build A400 Hard-tops using flat panel windshields. Our A400 Hard-tops are welded to provide sturdy support. They can accommodate sliding wide wings to allow for ventilation. These can have a straight edge or radius side wing. There are many choices of colors and glass tints available to finish the look of your boat.

  • Custom made to fit most boats
  • Flat panel Welded Hard-top with sliding or fixed side wings
  • Powder coated with a variety of colors to choose from
  • Laminated or Tempered glass
  • Glass available in a variety of tints
  • Tight fitting side panels

Paint Colors

Bright White

Matte Black

Silver

Glass Tint

6mm or 1/4" Laminated Glass

Canvas Insert With Wiper and Washer

Canvas insert windows are used on the flying bridge or in the pilot house to provide a regular glass window for better visibility and durability. These fixed windows are inserted and mounted onto the plastic. They use lighter weight 1/8″ tempered glass to keep the weight down to prevent stretching and stress on your canvas. They are constructed with our normal fixed 1/8″ thick heavy duty anodized aluminum frame so they can be made with radius or mitered corners. Imtra wiper and washing system is included which is waterproof and works on a 12 volt wiper motor. We can install these windows for you if you provide the original canvas for an extra charge.

  • Custom made to fit any size window opening
  • Clamp-in style frame for easy installation
  • 2.5″ or 3″ Radius or Mitered corners
  • Clear Anodized Aluminum or powder coated with a variety of colors to choose
  • 3mm or 1/8″ Tempered glass
  • Choice of glass tint
  • Wiper and washer system included
  • Support bars included
  • Guaranteed leak proof
  • Minimum size with wiper 24″x 24″

Paint Colors

Birght White

Matte Black

Silver

Glass Tint

3mm or 1/8" Tempered Glass

Industrial Windows



Our windows and doors are heavy duty made to withstand extreme conditions and weather. They are used in many commercial and heavy duty applications from trailers, cranes, trucks, and utility storage. If you want to keep the elements out then we can build a window or door to suit your needs. See the wide selection on our windows or doors page.

A5 Fixed Window

Fixed windows are designed to be used on most marine vessels or commercial vehicles as they are robust built to any size or shape to bring light into your cabin or to provide visual exposure. They have a 1/8″ thick heavy duty anodized aluminum frame for strength and to prevent corrosion. These can be custom made to fit any size opening with radius or mitered corners and they are available in a variety of colors to suit your needs.   Our extrusion has a built in drain system which is angled out to allow water to stay on the exterior. They can hold glass thickness’ from 1/4″ to 3/8″ in either Laminated or Tempered glass. Standard vessels use 1/4″ laminated or safety glass as they will stay in tact if broken. Commercial or work vessels use a thicker glass and may call for tempered for the extra strength.  These windows are sealed and guaranteed not to leak.

SPECIFICATIONS

  • 1/8″ thick and 1.25″ wide Anodized Aluminum extrusion
  • Custom made to fit any opening
  • 2.5″ or 3″ Radius or Mitered corners
  • Clamp-in style frame or surface mount for easy installation
  • Custom wall trim from 1/16″-2.5″
  • Clear Anodized Aluminum or powder coated with a variety of colors
  • Laminated or Tempered glass
  • Choices of glass tint
  • A variety of colours to choose from
  • Guaranteed leak free
  • Can be sealed for extreme weather conditions
  • Tested ISO 12216 for extreme weather conditions

Window Corners

  • 2.5” RADIUS
  • 3” RADIUS
  • MITERED

Paint Colors

Bright White

Matte Black

Silver

Glass Tint

6mm or 1/4" Laminated or Tempered Glass

A15 Sliding Window No Screen

Sliding windows are used on most marine recreational, luxury and commercial vessels. Our sliding windows sit in a three track extrusion. Each track separates the fixed, sliding glass and screen so they slide smoothly and freely. The T-bars lock to prevent any leaking and wind noise. We use heavy duty weather stripping to prevent moisture, wind and rattling to occur. Each pane of glass or screen sit on a slide rail for easy opening and to prevent vibration. The glass panes sit deeper in the track than other windows on the market which prevents water from penetrating the boat. Our unique drain system is angled to drain water quickly. Our large hidden drain holes allow water to flow freely while being aesthetically pleasing from the outside. Standard vessels use 1/4″ laminated or safety glass as they will stay in tact if broken.

  • Custom made to fit any size window opening
  • 1/8″ thick and 2″ wide anodized aluminum extrusion
  • Clamp-in style frame or surface mount for easy installation
  • Custom wall trims from 1/16″-2.5″
  • 3″ Radius or Mitered corners
  • Clear Anodized Aluminum or powder coated in a variety of colors
  • 1/4″ Laminated or Tempered glass
  • Choice of glass tint
  • Forward or Aft sliding
  • Inter locking t-bars
  • Tested ISO 12216 for extreme weather conditions

Paint Colors

Bright White

Matte Black

Silver

Glass Tint

6mm or 1/4" Laminated or Tempered Glass

A106 Hinged Window

These windows are another option if you are looking for air flow into your cabin while protecting the interior from the outdoor elements. These are commercial windows, constructed from heavy duty 1/4″ thick anodized aluminum for added strength. They are two frames within a frame so are heavy duty and capable of being built in larger sizes only. Our Pop-out windows can be custom ordered in any size with a 3″ radius or mitered corners. The hinges can be mounted at the top or on the sides. Gas shocks or adjustable supports are added to keep the window open at a set angle to allow for a free air flow. They form a tight seal and are leak proof when they are closed.

SPECIFICATIONS

  • Custom made to fit any size window opening
  • 1/4″ thick and 3″ wide
  • Clamp-in style frame or surface mount for easy installation
  • Custom wall trims from 1/16″-2.5″
  • 3″ Radius or Mitered corners
  • Clear Anodized Aluminum or powder coated in a variety of colours
  • 1/4″ Laminated or Tempered glass
  • Choice of glass tint
  • Hinge can be mounted on the top or sides
  • Choice of gas shocks or adjustable supports
  • Tested ISO 12216 for extreme weather conditions

Window Corners

  • 3” RADIUS
  • MITERED

Paint Colors

Bright White

Matte Black

Silver

Glass Tint

6mm or 1/4" Laminated or Tempered

A500 Sealed Unit

The A500 Sealed Unit is a commercial fixed window, constructed using a thicker and deeper extrusion to provide a stronger frame. This unit is capable of holding extra thick glass such as double paned or heated glass. They have a 1/4″ thick heavy duty anodized aluminum frame for strength and to prevent corrosion. These can be custom made to fit any size opening with radius or mitered corners and they are available in a variety of colors to suit your needs.   Our extrusion has a built in drain system which is angled out to allow water to stay on the exterior. They can hold glass thickness’ from 1/2″ in either heated or double paned in Laminated or Tempered glass. Commercial or work vessels use a thicker glass and may call for tempered for the extra strength.  These windows are sealed and guaranteed not to leak.

SPECIFICATIONS

  • 1/4″ thick and 1.25″ wide Anodized Aluminum extrusion
  • Custom made to fit any opening
  • 3″ Radius or Mitered corners
  • Clamp-in style frame or surface mount for easy installation
  • Custom wall trim from 1/16″-2.5″
  • Clear Anodized Aluminum or powder coated with a variety of colors
  • Uses a retaining ring to hold in glass
  • Laminated or Tempered glass 1/2″
  • Choices of glass tint
  • Available with powder coat in a varietey of colours to choose from
  • Guaranteed leak free
  • Can be sealed for extreme weather conditions
  • Tested ISO 12216 for extreme weather conditions

Window Corners

  • 3” RADIUS
  • MITERED

Paint Colors

Bright White

Matte Black

Silver

Glass Tint

6mm or 1/4" and 10mm or 3/8" Thickness

Laminated, Tempered, Double Paned, and Heated

A250 Insulated Hinged Door

Our insulated heavy duty door is seamlessly welded using two marine grade aluminum sheets insulated with foam or sound barrier insulation. This provides a weather tight door that is strong and durable to resist all the the abuse and elements thrown at it. These are custom built to fit into any door opening. There are many options which will allow you to order a variety of finishes and a selection of window tints. They can be produced with a 4″ radius or mitered corners. Upgrades can be made to include TrioVing locks and/or dogs.

Specifications

  • Custom made to fit your door opening
  • Radius 4″ or Mitered corners
  • Easy installation with trim ring for interior finish
  • Frame is made with a 6063 mill finished aluminum extrusion
  • Door insert is made from two 5052 aluminum sheets 0.090″ thick
  • Available in mill finish or powder coated in a variety of colors
  • Fixed, sliding or pop-out windows can be added
  • Glass can be ordered in a variety of tints
  • European TrioVing lock sets can be upgraded
  • Dog handles can be mounted for extra stability

Paint Colors

Bright White

Matte Black

Silver

Glass Tint

6mm or 1/4" Laminated and Tempered Glass

A250 Hinged Dutch Door

The Dutch door is a heavy duty hinged door which is seamlessly welded using two marine grade aluminum sheets and insulated with foam. These can be built as an engine room door using sound down barrier insulation. This provides a weather tight door that is strong and durable to resist all the abuse and elements thrown at it. These are custom built to fit into any door opening. There are many options which will allow you to order a variety of finishes and a selection of window tints. They are produced with radius 4″ or mitered corners. Upgrades can include European TrioVing locks and additional dogs.

Specifications

  • Custom made to fit your door opening
  • Radius 4″ or Mitered corners
  • Easy installation with trim ring for interior finish
  • Frame is made with a 6063 mill finished aluminum extrusion
  • Door insert is made from 5052 aluminum sheet 0.090″ thick
  • Available in mill finish or powder coated in a variety of colors
  • Fixed, sliding or pop-out windows can be added
  • Glass can be ordered in a variety of tints
  • European TrioVing lock sets can be upgraded
  • Dog handles can be mounted for extra stability

Paint Colors

Bright White

Matte Black

Silver

Glass Tint

6mm or 1/4" Laminated or Tempered Glass

2007 Insulated Sliding Door

Our insulated heavy duty sliding door  is seamlessly welded  from two marine grade aluminum sheets insulated with foam or sound barrier insulation. This provides a weather tight door that is strong and durable to resist all the abuse and elements thrown at it. These are custom built to fit into any door opening. There are many options which will allow you to order a variety of finishes and a selection of window tints. They are produced with mitered corners and the frames can be ordered shimmed to slide over an existing window or non-shimmed. European TrioVing locks are standard on these sliding doors

Specifications

  • Custom made to fit your door opening
  • Mitered corners
  • Easy installation with trim ring for interior finish
  • Frame is made with 6063 mill finished aluminum
  • Door insert is made from 5052 aluminum sheet 0.090″ thick
  • Insulated with foam or sound barrier foam
  • Insert slides on stainless steel wheels
  • Available in mill finish or a variety of colors
  • Glass can be ordered in a variety of tints
  • TrioVing lock standard, can be keyed a like
  • Any size or style window can be added

Paint Colors

Bright White

Matte Black

Silver

Glass Tint

6mm or 1/4" Laminated and Tempered Glass

Butyl Tape

Butyl tape is used to set windows and doors when installing. It provides a soft pliable barrier which helps set the window or door. It takes a few days to set and adhere to the hull and is usually used with silicone which adheres it to the hull. Sold in 25 foot rolls in black or grey 1/2″ wide x 1/8″ thick.

Price: $15.00 per roll

Silicone

Tremsil 200 is a one-part acetoxy silicone sealant. Tremsil 200 cures to a flexible rubber when exposed to moisture present in the air. Tremco Tremsil 200 produces a weathertight seal to glass, metal, porcelain, ceramic and most painted surfaces. Sold in white or grey.

Price: $12.00 per tube

D-Gasket Ribbed

Ribbed D-Gasket. Size is 11/16″ wide x 1/2″ high. Sold by the foot or 500 ft per box.

Price: $5 per foot

Sale Price: $3 per foot

RB1723 D-Gasket Smooth

RB1723 smooth D-Gasket used for doors with a thicker density. Size is 5/8″ wide x 3/8″ high.

Price: $5 per foot

RB1705 Ribbed Light Gasket

RB1705 light-weight ribbed gasket used for doors with a lighter density. Size is 5/8″ wide x 1/4″ high.

Price: $5 per foot

Dog Door Handles

Stainless Steel Dog handles used to provide strength and a tighter seal on our A250 Doors. Only available in stainless, includes spacers and seals.

Price: $400 a pair

Exterior Window Glazing Rubber

Custom extruded to fit AJR Windows only. Made of hard polymer rubber designed to slot into our extrusion. Sold by the foot.

Price: $5.00 per foot

Window Screen

Screen material or mesh can be purchased separately or custom screens can be built with a pattern. Email about price as sold per square inch.

Laminate Glass

Glass can be purchased separately for all the laminate glass tints and sizes we stock. A cutting charge will apply if you want it cut to your pattern. Email about price as sold per square inch.

Window Latch

Custom built to fit AJR Windows. These handles work with 1/4″ glass and clip into our window extrusion. Available in Anodized Aluminum.

Price: $10.00 each

Lever Lock Set

Custom designed lever lock set for hinged doors. This product is made in China but provides a heavy duty, stainless steel lock set at an affordable price. Complete set including keys, lock box and available in Right or Left side.

Price: $295

Trioving Lock Set

Trioving is a Norwegian made stainless steel lock set. Considered the best in the Marine industry. Sold as a complete set in left or right side includes keys.

Price: $799.00

Key Blanks

Key blanks can be cut by your local key cutter to provide spares for your existing keys available for our Lever Lockset and our TrioVing Lockset. Price: $20.00 For C1KB   Lever Lockset $35.00 For TVBLANK TrioVing lockset

Mobella Lock Set

Mobella Star Talon lockset with high seas handle, finished in black (default finish).   Price: $850.00

O – A5 Fixed Window

This A5 Fixed Window fits an opening of approximately 15 3/8″ W x 31 3/8″ H with a 3″ radius corner. It has a Powder Coated Black frame with 1/4″ 6mm 44% grey laminate glass. This a new window which has never been installed. The wall thickness is 3/16″ but custom trim can be made.

Regular $477.15

Sale Price $295



Custom trim can be ordered for $75.









M – A5 Fixed Window

This A5 Fixed Window fits an opening of approximately 36″ W x 21″ H. It is finished in anodized aluminum frame with a 3″ radius corners, with 1/4″ 6mm 44% grey laminate glass. This a new window which has never been installed.

Regular $581.29

Sale Price $295



Custom trim can be ordered for $75.









D – A5 Fixed Window

This A5 Fixed Window fits an opening of approximately 16″ W x 24″ H. It is finished with a powder coated black anodized aluminum frame with a 3″ radius corners, with 1/4″ 6mm clear laminate glass. This a new window which has never been installed.

Regular $434.52

Sale Price $250

Custom trim can be ordered for $75.









B – A500 Sealed Unit Fixed Window

3 x A500 Insulated Sealed Fixed Window Port or Starboard fits an opening of approximately 25″ W x 35″ H. We can build a frame finished in anodized aluminum with mitered corners, custom wall thickness with 44% Grey Tint tempered glass. This a new piece of glass with a minor scratch which has never been installed and will come with a frame.

Regular Price complete glass and frame $1,374.64 each

Sale Price complete glass and frame $500 each









N – A5 Fixed Window

This A5 Fixed Window fits an opening of approximately 30″ W x 25″ H. It is finished with an anodized aluminum frame with 3″ radius corners, with 1/4″ 6mm 44% grey laminate glass. This a new window which has never been installed.

Regular $442.59

Sale Price $150

Custom trim can be ordered for $150.









AA – A105 Heated Glass Window

A105 Heated Glass 48″ x 29.5″ Window with 3″ radius corners Port/Stbd. This has 3/4″ Heated Tempered Laminated glass with junction box in an anodized frame. This is a new build which has never been installed. Custom size trim will be made at no charge.

Regular Price $9,746

Sale Price $2,500





Custom frame can be ordered.













G – 2007 Sliding Door/Fixed Window

2007 Insulated Sliding Door with fixed window 25 w x 72 h. It opens from left to right, powder coated bright-white with an A5 fixed window with 44% Grey Laminate Glass, and a Trioving lock set. This is a new door which has never been used.

Regular $4,830

Sale Price $3,200









U – A500 19mm Fixed Window

A500 19mm Fixed Window Port/Starboard fits an opening of approximately 38 W x 28″ H. We can build a frame finished in anodized aluminum with a 3″ radius corners, custom wall thickness with 19 mm clear tempered glass. Will fit a forward or aft leaning house. This a new window which has never been installed and comes with a frame.

Regular Price complete glass and frame $3120,55 each

Sale Price complete glass and frame $500 each









L – 2007 Sliding Door/Fixed Window

2007 Insulated Sliding Door with fixed window 22 w x 52 h. It opens from right to left, built in a mill finish with an A5 fixed window with 72% green glass, and a Trioving lock set. It was used for display but never mounted on a vessel.

Regular $4,163

Sale Price $1,800











K – 2018 Sliding Door/Fixed Window

2018 Sliding Door with fixed window 21 5/8 w x 51 5/8 h. It opens from left to right, done in a mill finish, with an A5 fixed window with 44% grey glass, and a Trioving lock set. It was used for display but never mounted on a vessel.

Regular $4,000

Sale Price $1,600











A – Heated Glass

Heated Glass 29 3/8″ x 29 5/8″ with 3″ radius corners is brand new. This was ordered in the wrong size. It can be installed into an anodized or painted frame for a charge. This is 3/4″ Clear Heated Tempered Laminated Glass with junction box and power installed.

Glass only Regular $1200

Glass Sale Price $500

Custom frame can be ordered.









L – A5 Fixed Window

This is a fixed window approximately  17 1/4″W x 21 5/8″H. The finish is anodized aluminum with 3″radius corners, 1 3/8″ wall thickness, and your choice of 1/4″ 6mm laminated glass clear or tint.

Regular $375.75

Sale Price $195

  • Cust0m Trim can be made for your wall thickness for an additional $50

F – A5 Fixed Window

This is a fixed window approximately  13″W x 25.5″H. The finish is anodized aluminum with 3″radius corners, 1 3/8″ wall thickness, and your choice of 1/4″ 6mm laminated glass clear or tint.

Regular $370.55

Sale Price $195

  • Cust0m Trim can be made for your wall thickness for an additional $50

I – A5 Fixed Window

This is a fixed window approximately  36W x 38H. The finish is bright white powder coat with radius corners, surface mount and 6mm clear laminated glass.

Regular $594.76

Sale Price $150

E – A10 Sliding Window without screen

This is a Starboard A10 sliding window from Aft to Fwd, without screen, approximately 30″ W x 30″ H. The finish is an anodized aluminum with 3″ radius corners. It has 1/4″ 20% grey tinted glass. The wall thickens is for 1/8″. This is a new window which has never been installed.

Regular $891.50

Sale Price $450







H – A15 Sliding Window without screen

This is a Port/Starboard A15 sliding window without screen approximately 66″ W x 28″ H. The finish is powder coated black matte aluminum with a 3″ radius corners. The is for a 1 3/16″ wall thickness and 6mm 44% Grey tint laminated. These are new windows but built to the wrong specifications and have never been installed.

Regular $2,440 pair

Sale Price $995 pair







C – A15 Sliding Window without screen

This is a Port/Starboard A15 sliding window without screen approximately 58 W x 23 H. The finish is powder coated black matte aluminum with a 2.5″ radius corners. The is for a 1/8″ wall thickness and 6mm tint or clear laminated glass may be specified. These are new windows but built to the wrong specifications.

Regular $2,131 pair

Sale Price $995 pair







T – A150 Sliding Window with screen

This is a Starboard side A150 sliding window with screen approximately 92 W x 22 H. The finish is anodized aluminum with a 3″ radius corners, 1/8″ wall thickness and 6mm 44% Grey laminated glass. It is a new window with minor scratches.

Regular $1210

Sale Price $499







S – A150 Sliding Window with screen

This is a Starboard side A150 sliding window with screen approximately 92 W x 22 H. The finish is anodized aluminum with a 3″ radius corners, 1/8″ wall thickness and 6mm clear laminated glass. It is a new window with minor scratches.

Regular $1173

Sale Price $699







J – A5 Fixed Window

This is a Port and Starboard fixed window approximately  36W x 28H. The finish is anodized aluminum with 3″ radius corners, 3/16″ wall thickness and 6mm clear laminated glass. We have available 2 window.

Regular $518.48

Sale Price $349







  • CUSTOM MADE TO FIT ANY SIZE WINDOW OR DOOR OPENING.
  • FOR OVER 3O YEARS WE’VE BEEN PROVIDING PEACE AND MIND FOR CAPTAINS UP AND DOWN THE WEST COAST.
  • QUALITY YOU CAN RELY ON WITH ISO CERTIFICATION FOR EXTREME WEATHER CONDITIONS.

Makers of quality custom-designed marine windows, doors and windshields for over 30 years. Fill out the details and get a quote in less than 24 hours.

Get a Quote
